Project 3: Light Control

This aim of this project is to design a non-denominational chapel in Farmingdale State College using methods of light control previously researched. We focus on making walls curved and adding reflectors to windows to prevent light from directly hitting the floor.

Light Background Research

Sant'Andrea Al Quirinale


The building has an oval plan with

stucco interior and columns using light

colors in order to reflect light entering

the building.

Windows high up surround the lantern in the middle, such that the light enters from all sides and shines down which lights up the dome.


Similar lighting concept is used above the altar, high placed windows in a circular shape in order to allow light to enter, emphasizing the importance of the altar.


Site Selection

Project 3 Justin Mohan 5-21-Model_edited

This proposed location is suitable for building's use due to being placed separated from educational areas and instead within student life territory.

Sorting Of Spaces

Religious

  • Main Chapel

  • Memorial Chapel

  • Meditation Chapel

Secular

  • Clergy's Office

  • Storage

  • Conference Room

  • Library

  • Bathrooms

  • Secretary Office

  • Lobby

Hierachy

  • Main Chapel

Floor Plan

Circulation

Floor Plan.png

Circulation

Contextual Analysis Chart

SPACE FARMINGDALE.png
Circulation FARMINGDALE.png

Sun Angles

Summer

Winter


Spring

Fall

Preliminary Light Sections

PRELIMINARY SECTIONS2.png

Surrounding Context


Elevation Views

NW Elevation.png
NE Elevation.png

NE VIEW

NW VIEW

SW Elevation.png

SW VIEW

SE Elevation.png

SE VIEW

2D Sections

Section 1.png
Section 2.png

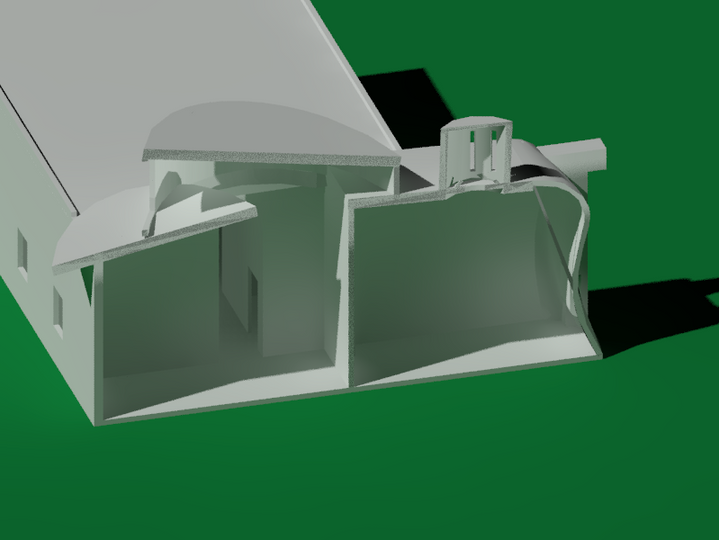

3D Sections

Render 3.png
Render 4.png
Render 1.png

Exterior Views
